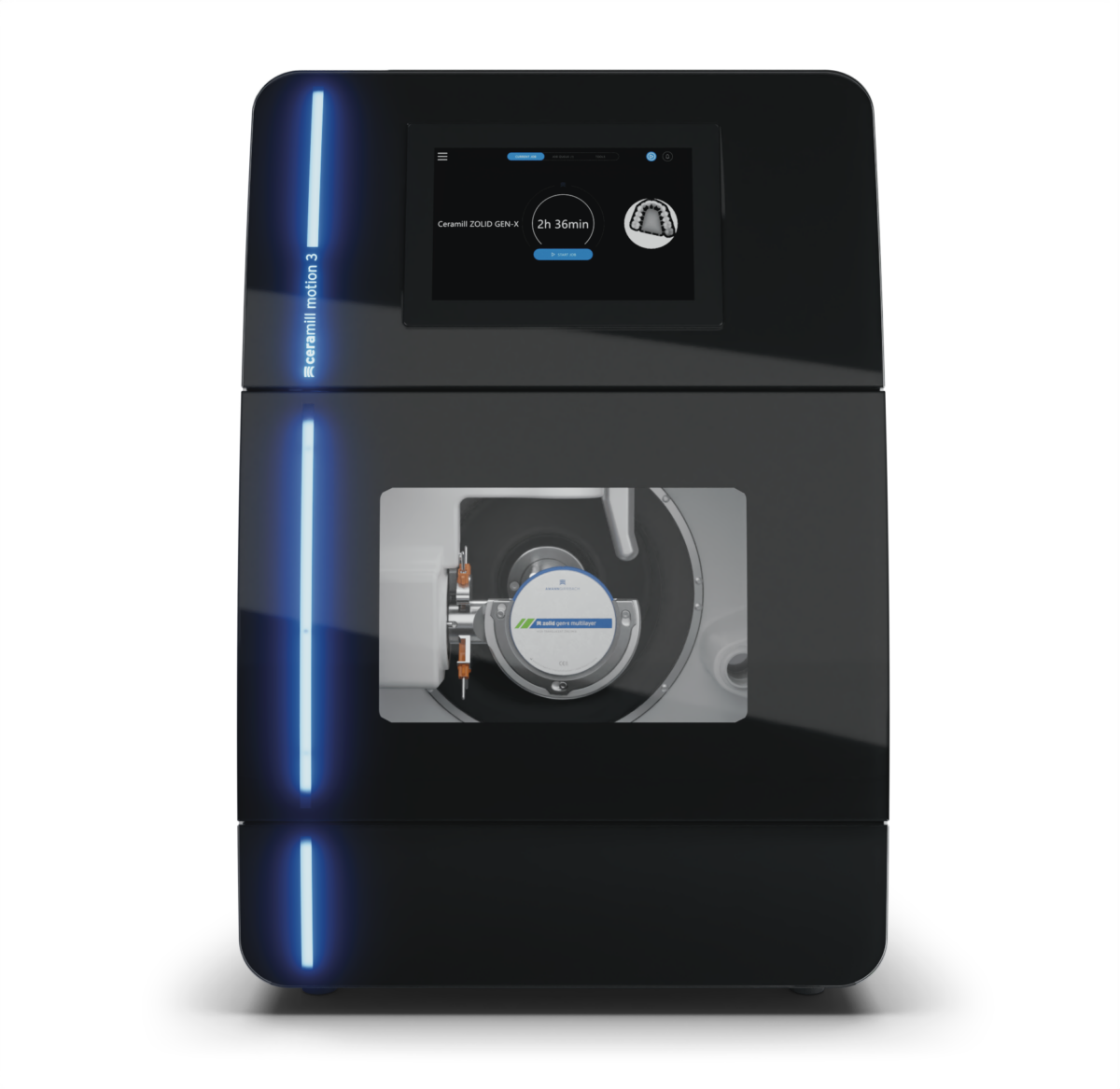

Ceramill Motion 3 - Convenience and excellence combined

The most intelligent 5-axis hybrid machine not only combines wet and dry processing in a single machine, but also enables an end-to-end digital workflow.

SKU 181350

Features

Focus on the essential value-creating activities. Guided workflows, from cleaning to maintenance, tool and holder management safeguarded against mix-ups, and semi-autonomous operation give you the freedom to devote yourself entirely to your profession instead of machine handling. With the integrated camera, our Support will assist you in remote mode to let you continue working as quickly as possible after interruptions due to irregularities in the milling process. The automatic reminder function for maintenance, care and service cycles in addition provides for reliability and guarantees a long service life of the machine.

Results - true to detail and precise
Owing to innovative sculpturing technology (C-Clamp), even the finest fissures can be milled in the anterior tooth surface in excellent quality. The innovative machining strategies for rotational milling, such as the Carving Mode, Detailing or Speedlining Mode, round off the versatility of the system.
Control – intuitive and automated
Self-service functions, guided CAD/CAM production and maintenance, an intuitive HMI, an integrated camera, digital tool and holder management, as well as auto-calibration further facilitate everyday laboratory work.

User-friendliness in CAD/CAM fabrication

The Ceramill Motion 3 is not merely another milling machine - it sets new standards in terms of convenience, quality and process reliability. Digital peace of mind for the user.
Motion 3

Smart, easy, digital

To provide increased ease of use and the best milling strategy, user interaction with the machine has been raised to a new level. The most important operating, servicing, handling and maintenance steps are explained on a display supported by images and videos. This leaves more time for the essentials in daily laboratory routines. You can keep an overview of the entire production process with the AG.Live portal while at the same time responding optimally to the needs of your own customers. In connection with the eShop, AG-Live offers the option of managing production and resources.

Technical data

Compatible with Polymers, Metals, Ceramics, Hybrids and Zirconia
5-axis control
Dry and wet processing modes
6-fold tool changer incl. management of replacement tools
Dimensions (DxWxH): 595 x 530 x 780 mm
Weight 79 kg
Power consumption: 250W
Spindle speed: 100.000min-1
show all
