CERAMILL MILLING UNITS

Milling machines – For a future-oriented workflow

Many years of experience, expertise and passion characterize us and equally our machine portfolio. As a pioneer in dental CAD/CAM manufacturing, we develop and produce equipment that meets your daily, high demands: Highest precision across the entire material and indication portfolio, maximum ease of use, low-vibration, robust design and securely positioned for the future. All components function smoothly and are fully integrated into the workflow.

Application

Material

Our milling machines for lab and practice

From the chairside system to the fully automated high-end milling unit.

Lab Practice Dry RFID

Ceramill Motion Air

Compact
Integrated compressor
RFID

Lab Dry Wet Autonomous

Ceramill Matik

Autonome Reinigung
36-fach Blank-Wechsler
RFID

Lab Practice Dry Wet Metal

Ceramill Matron

VMax-Arm
8-fold blank changer
RFID

Lab Practice Dry Wet

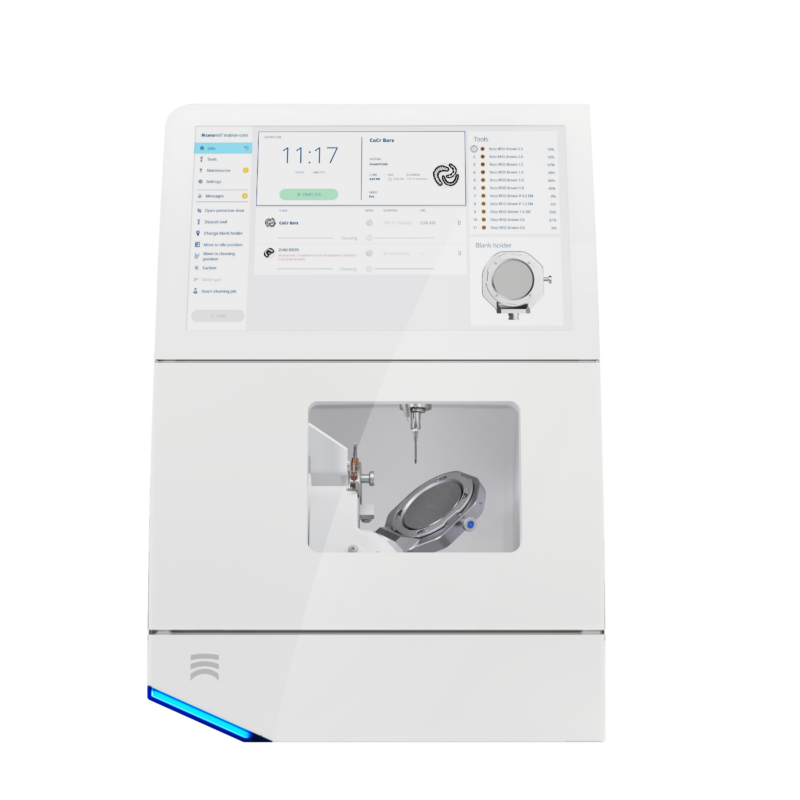

Ceramill Matron Core

VMax-Arm
Compact
RFID

Lab Practice Dry Wet

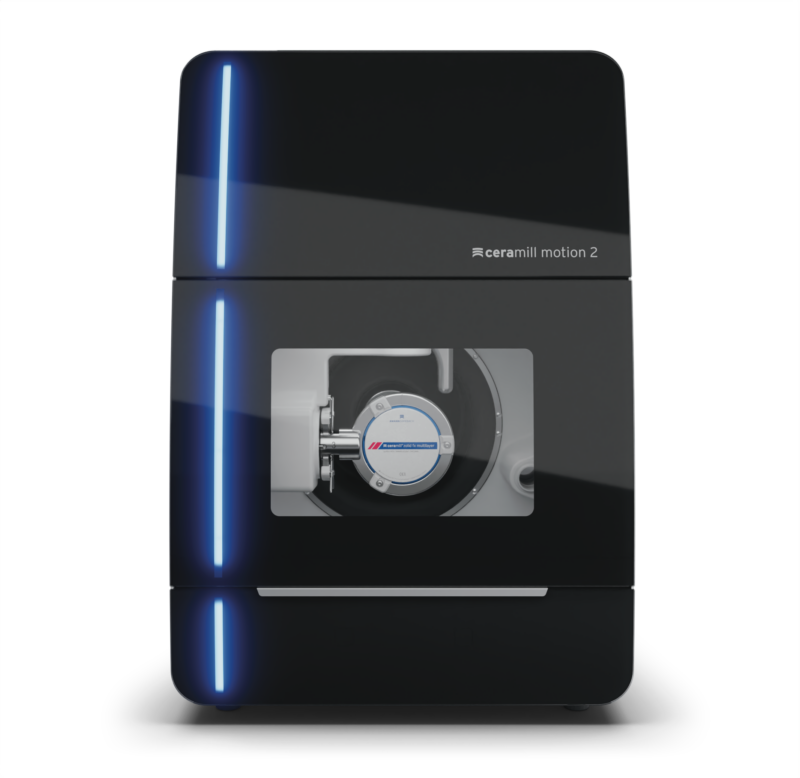

Ceramill Motion 2

Hybrid

Lab Practice Dry Wet

Ceramill Motion 3

C-Clamp
Autokalibrierung
RFID

Lab Practice Dry Wet

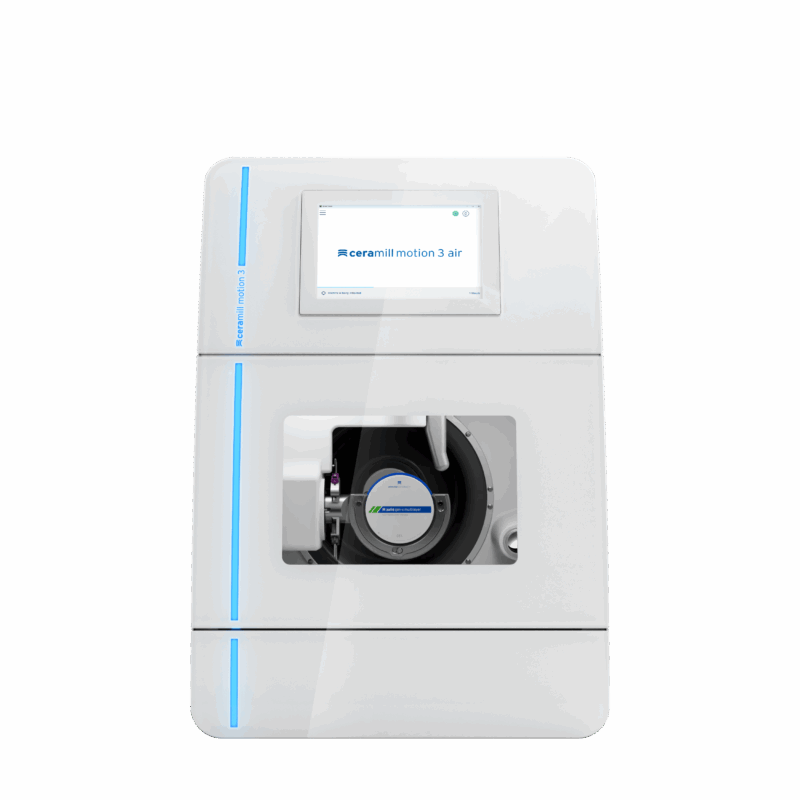

Ceramill Motion 3 Air

C-Clamp
Autokalibrierung
RFID

Practice Dry

Ceramill Motion DRS

Blockbearbeitung
Integrated compressor & water tank
RFID

Holders & Rotos (Burs) at a glance

Which holder and which Roto fit your machine? Find all item numbers and compatibilities at a glance.

Holder	Ceramill Motion 2	Ceramill Motion 3 / Motion 3 Air	Ceramill Matik	Ceramill Matron / Matron Core	Ceramill Motion Air
Blank holder 98 mm	179294	181360	181211	181381	–
Blank holder C-Clamp	179247	181361	181209	181380	181345
Block holder UN mandrel	3-fold 179260* 9-fold 179248* 12-fold 179290*	3-fold 181362 9-fold 181366	4-fold 181213	181383	181346
Block holder PrograMill mandrel	179249	3-fold 181363 9-fold 181367	4-fold 181219	181382	–
Blank holder Preforms	179278	181364	181214	181384	–
Blank holder D-Set	179283	181365	181216	–	–
Blank holder Metal	–	–	181218	181385	–
Abutment adapter
ceramill ti-forms	181368AG		181388AG		–
DESS	181368D		181388D		–
MEDENTIKA	181368M		181388M		–
Preat	181368P		181388P		–

* only in conjunction with 760975

Description	Item no.	Motion 2	Motion 3 / 3 Air	Matik	Motion DRS	Matron / Matron Core	Motion Air	Materials
Long-Life Tools · 3 mm
Roto RFID D3 grey 2.5	751021	●	●	●		●	●	Zirconia, Sintered alloy, Denture teeth, Hybrid (milling), Tooth arch, Composite
Roto RFID D3 grey 1.0	751022	●	●	●		●	●	Zirconia, Sintered alloy, Denture teeth, Hybrid (milling), Tooth arch, Composite, Test material
Roto RFID D3 grey 0.6	751023	●	●	●		●	●	Zirconia, Sintered alloy, Hybrid (milling), Tooth arch, Composite
Roto RFID D3 grey 0.3	751024	●	●	●		●	●	Zirconia, Sintered alloy, Hybrid (milling)
Roto RFID D3 green 2.5	751025	●	●	●		●	●	PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA, MOGU resin, Model PU, Base wax, Base resin, PMMA-Monoblock
Roto RFID D3 green 1.5	751026	●	●	●		●	●	Model PU, Base wax, Base resin, PMMA-Monoblock
Roto RFID D3 green 1.0	751027	●	●	●		●	●	PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA, MOGU resin, Base wax
Roto RFID D3 green 0.6	751028	●	●	●		●	●	PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA, MOGU resin
Roto RFID D3 green 0.3	751029	●	●	●		●	●	Wax, Model PU
Long-Life Tools · 6 mm
Roto RFID Grey 2.5	759600					●		Zirconia, Sintered alloy, Denture teeth, Hybrid (milling), Tooth arch, Composite, Test material
Roto RFID Grey 1.0	759601					●		Zirconia, Sintered alloy, Denture teeth, Hybrid (milling), Tooth arch, Composite, Test material
Roto RFID Grey 0.6	759602					●		Zirconia, Sintered alloy, Denture teeth, Hybrid (milling), Tooth arch, Composite, Test material
Roto RFID Grey 0.3	759603					●		Zirconia, Sintered alloy, Denture teeth, Hybrid (milling), Tooth arch, Composite, Test material
Roto RFID Green 2.5	759604					●		PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA, MOGU resin, Model PU, Base wax, Base resin, PMMA-Monoblock
Roto RFID Green 1.0	759605					●		PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA, MOGU resin, Base wax
Roto RFID Green 0.6	759606					●		PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA, MOGU resin
Roto RFID Green 0.3	759607					●		Wax, Model PU
Roto RFID Green 1.5	759627					●		Model PU, Base wax, Base resin, PMMA-Monoblock
Roto RFID Brown R 1.2 EM	759615					●		CoCr hard, Titanium hard
Roto RFID Brown F 1.2 EM	759616					●		CoCr hard, Titanium hard
Roto RFID Brown 3.0	759619					●		Premills, Titanium hard
Roto RFID Brown 2.5	759611					●		Premills, CoCr hard
Roto RFID Brown 2.0	759612					●		CoCr hard, Titanium hard
Roto RFID Brown 1.5 TS	759617					●		CoCr hard, Titanium hard
Roto RFID Brown 1.5 SM	759618					●		CoCr hard
Roto RFID Brown 1.5	759613					●		Premills, CoCr hard, Titanium hard
Roto RFID Brown 1.0	759614					●		Premills, CoCr hard, Titanium hard
Roto RFID brown 1.2 EM	751033					●		Zirconia, Sintered alloy, PMMA, TEMP, TEMP ML, PEEK, Wax, Test PMMA, CoCr hard, Composite, Titanium hard
Roto RFID brown 0.5 EM	751034					●		Zirconia, Sintered alloy, PMMA, TEMP, TEMP ML, PEEK, Wax, Test PMMA, CoCr hard, Composite, Titanium hard
Roto RFID brown 0.5 SM	751035					●		Zirconia, Sintered alloy, PMMA, TEMP, TEMP ML, PEEK, Wax, Test PMMA, CoCr hard, Composite, Titanium hard
Roto RFID Purple 2.0 TS	759622					●		Zirconia, Sintered alloy
Roto RFID Purple 1.5 TS	759624					●		Zirconia, Sintered alloy, TEMP, PEEK, Wax
Roto RFID Purple 1.2 EM	759625					●		Zirconia, Sintered alloy, TEMP, TEMP ML, PEEK, Wax, Test PMMA, Hybrid (milling), Calibration milling, Composite
Roto RFID Purple 0.6 EM	759626					●		Zirconia, Sintered alloy, TEMP, TEMP ML, PEEK, Wax, Test PMMA
Roto RFID purple 1.5 EM	759628					●		Zirconia, Sintered alloy, TEMP, TEMP ML, PEEK, Wax, Test PMMA, Hybrid (milling), Composite
Roto RFID Purple 1.8 TS	759623					●		TEMP, TEMP ML, PEEK
Roto RFID Calibration EM	759621					●		Test material
Roto RFID Calib. 6 mm	759620					●
Roto RFID Orange G 2.0	759608					●		Hybrid (grinding), e.max, nice, Glass ceramic
Roto RFID Orange G 1.0	759609					●		Hybrid (milling), Hybrid (grinding), e.max, nice, Glass ceramic, Composite
Roto RFID Orange G 0.4	759610					●		Hybrid (milling), Hybrid (grinding), e.max, nice, Glass ceramic, Composite
Classic Tools · 3 mm
Roto RFID 2.5 ZI	760660	●	●	●		●	●	Zirconia
Roto RFID 1.0 ZI	760661	●	●	●		●	●	Zirconia, Test material
Roto RFID 0.6 ZI	760662	●	●	●		●	●	Zirconia
Roto RFID 0.3 ZI	760663	●	●	●		●	●	Zirconia
Roto RFID 2.5 DC BLM	751010				●	●		Zirconia, TEMP, Hybrid (milling)
Roto RFID 1.0 DC BLM	751011				●	●		Zirconia, TEMP, Hybrid (milling)
Roto RFID 0.6 DC BLM	751012				●	●		Zirconia, TEMP, Hybrid (milling)
Roto RFID 2.5 DMB DC	760684	●	●	●	●	●	●	TEMP, Denture teeth, Hybrid (milling)
Roto RFID 1.0 DMB DC	760685	●	●	●	●	●	●	TEMP, Denture teeth, Hybrid (milling)
Roto RFID 0.6 DMB DC	760686	●	●	●	●	●	●	TEMP, Hybrid (milling)
Roto RFID 0.3 DMB DC	760687	●	●	●	●	●	●	Hybrid (milling)
Roto RFID 2.5 PMMA/Wax	760668	●	●	●		●	●	PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA
Roto RFID 1.0 PMMA/Wax	760669	●	●	●		●	●	PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA, Model PU
Roto RFID 0.6 PMMA/Wax	760670	●	●	●		●	●	PMMA, TEMP, TEMP ML, Splintec, PEEK, Wax, Test PMMA
Roto RFID 0.3 PMMA/Wax	760671	●	●	●		●	●	Wax, Model PU
Roto RFID 2.5 Sintron	760664	●	●	●		●	●	Sintered alloy
Roto RFID 1.0 Sintron	760665	●	●	●		●	●	Sintered alloy
Roto RFID 0.6 Sintron	760666	●	●	●		●	●	Sintered alloy
Roto RFID 0.3 Sintron	760667	●	●	●		●	●	Sintered alloy
Roto RFID 2.5 SC	760680		●	●		●	●	TEMP, TEMP ML, Splintec, Wax, MOGU resin
Roto RFID 1.0 SC	760681		●	●		●	●	TEMP, TEMP ML, Splintec, Wax, MOGU resin
Roto RFID 0.6 SC	760682		●	●		●	●	TEMP, TEMP ML, Splintec, Wax, MOGU resin
Roto RFID 0.3 SC	760683		●	●		●	●	Wax
Roto RFID D3 brown 1.2 EM	751030			●		●		Zirconia, Sintered alloy, PMMA, TEMP, TEMP ML, PEEK, Wax, Test PMMA, CoCr hard, Composite, Titanium hard
Roto RFID D3 brown 0.5 EM	751031	●	●	●		●	●	Zirconia, Sintered alloy, PMMA, TEMP, TEMP ML, PEEK, Wax, Test PMMA, Hybrid (milling), CoCr hard, Composite, Titanium hard
Roto RFID D3 brown 0.5 SM	751032			●		●		Zirconia, Sintered alloy, PMMA, TEMP, TEMP ML, PEEK, Wax, Test PMMA, Hybrid (milling), CoCr hard, Composite, Titanium hard
Roto RFID 2.5 COCR	760688			●		●		CoCr hard
Roto RFID 1.5 COCR Telescope	760691			●		●		CoCr hard
Roto RFID 1.5 COCR	760689			●		●		CoCr hard
Roto RFID 1.0 COCR	760690			●		●		CoCr hard
Roto RFID 2.0 T-Shape	751014	●	●	●		●	●	Zirconia, Sintered alloy
Roto RFID 1.5 T-Shape	751003	●	●	●		●	●	Zirconia, Sintered alloy, TEMP, TEMP ML, PEEK, Wax
Roto RFID 1.8 T-Shape	751015	●	●	●		●	●	TEMP, TEMP ML, PEEK
Roto RFID 1.2 ST	751001	●	●	●		●	●	Zirconia, Sintered alloy, TEMP, TEMP ML, PEEK, Wax, Test PMMA, Hybrid (milling), Calibration milling, Composite
Roto RFID D3 purple 1.5 ST	751036	●	●	●		●	●	Zirconia, Sintered alloy, TEMP, TEMP ML, PEEK, Wax, Test PMMA, Hybrid (milling), Composite
Roto RFID 0.6 ST	751002	●	●	●		●	●	Zirconia, Sintered alloy, TEMP, TEMP ML, PEEK, Wax, Test PMMA
Roto RFID 2.5 Calibration	751020					●	●	Test material
Roto RFID Calib. 3 mm	181205	●	●	●	●	●
Roto RFID 3.0 Titan	760702			●		●		Titanium hard
Roto RFID 2.0 Titan	760703			●		●		Titanium hard
Roto RFID 1.5 T-Shape Titan	760708			●		●		CoCr hard, Titanium hard
Roto RFID 1.5 Titan	760704			●		●		Titanium hard
Roto RFID 1.2 R Titan	760707			●		●		Titanium hard
Roto RFID 1.2 F Titan	760705			●		●		Titanium hard
Roto RFID 1.0 Titan	760706			●		●		Titanium hard
Roto RFID 2.0 Ti	760672	●	●	●		●		Premills
Roto RFID 1.0 Ti	760673	●	●	●		●		Premills, Titanium hard
Diamond RFID 1.8	760676	●	●	●		●		Hybrid (grinding), e.max, nice, Glass ceramic
Diamond RFID 1.4	760677	●	●	●		●		Hybrid (grinding), e.max, nice, Glass ceramic
Diamond RFID 1.0	760678	●	●	●		●		Hybrid (grinding), e.max, nice, Glass ceramic
Diamond RFID 0.4	760679	●	●	●		●		Hybrid (grinding), e.max, nice, Glass ceramic
Diamond RFID 0.6 Abut	760675					●		Hybrid (grinding), e.max, nice
Roto RFID 2.0 Diamond BLG	751004	●	●	●	●	●		Hybrid (grinding), e.max, nice, Glass ceramic, Composite
Roto RFID 1.0 Diamond BLG	751006	●	●	●	●	●	●	Hybrid (milling), Hybrid (grinding), e.max, nice, Glass ceramic, Composite
Roto RFID 0.4 Diamond BLG	751008	●	●	●	●	●	●	Hybrid (milling), Hybrid (grinding), e.max, nice, Glass ceramic, Composite
Roto RFID 2.5 Model	760697	●	●	●		●		MOGU resin
Roto RFID 2.0 Model	760698		●	●		●		MOGU resin
Roto RFID 3.0 Wax Denture	760696		●	●		●		MOGU resin, Model PU
Roto RFID 1.0 Wax Denture	760695		●	●		●		Model PU
Roto RFID 2.5 PMMA Denture	760692		●	●		●		Base wax, PMMA-Monoblock
Roto RFID 1.5 PMMA Denture	760693		●	●		●		Base wax, PMMA-Monoblock

Holder overview (PDF)Roto overview (PDF)

Open. Digital. Fully integrated.

Highest precision across the entire versatile range of materials and indications, future-proofing and maximum ease of use form the basis of the Ceramill machine concept.

Performance through connection

We at Amann Girrbach are convinced that brilliant performance is based on an overarching approach. Holistic solutions and the seamless connection between individual components create digital workflows that enable outstanding, efficient results.

Every interface taken into account

We don’t just live a holistic approach for our customers – it is also practised internally throughout a product’s development process. From the initial idea to market launch, all interfaces of the workflow are always taken into account. When developing a milling machine, the focus is placed from the very beginning on the interfaces to CAD, CAM, the material portfolio and the necessary tools. The result is a validated, tested and integrated process – for smooth, reliable operation in your lab or practice.

Developed, manufactured and tested in Austria

Our Ceramill milling and grinding machines are produced 100 percent in-house, exclusively at the Amann Girrbach headquarters in Austria. Thanks to decades of experience in CNC technology and strong development expertise in CAD/CAM, we have the know-how to develop our machines from scratch and manufacture them on site. This also enables us to equip existing milling machines with updates and new or optimised milling strategies.

Robust and low-vibration

In addition to high-quality components, our machines are designed to be particularly low in vibration. This enables reliable, precise and long-term production of accurate dental restorations. Demanding materials such as titanium can also be processed precisely on both the Ceramill Matik and the Ceramill Matron.

Let’s plan your next step.

Would you like to learn more about a product or expand your existing workflow? Talk to our team about your requirements.
